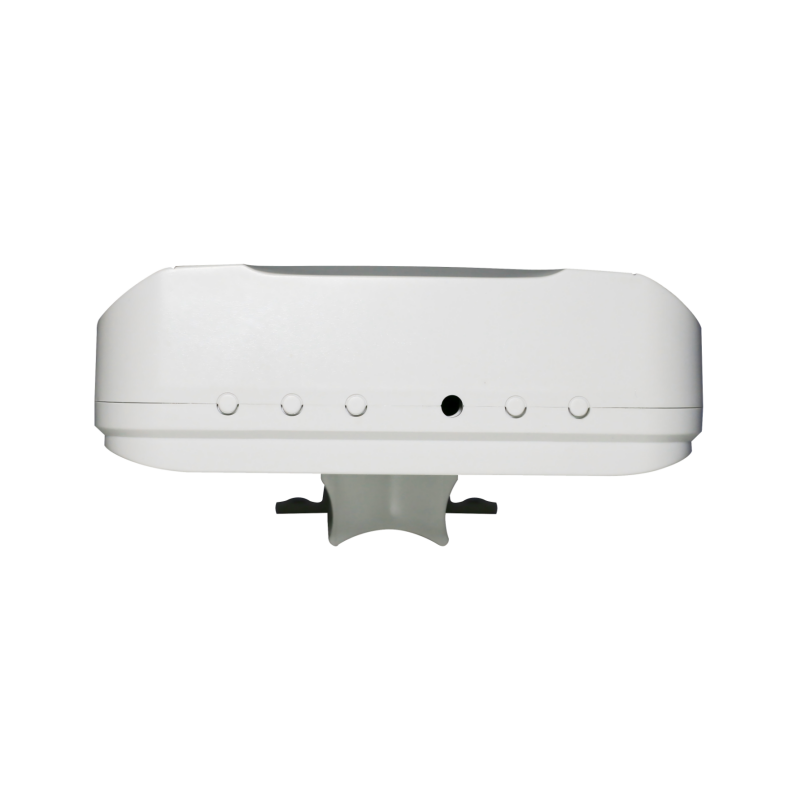

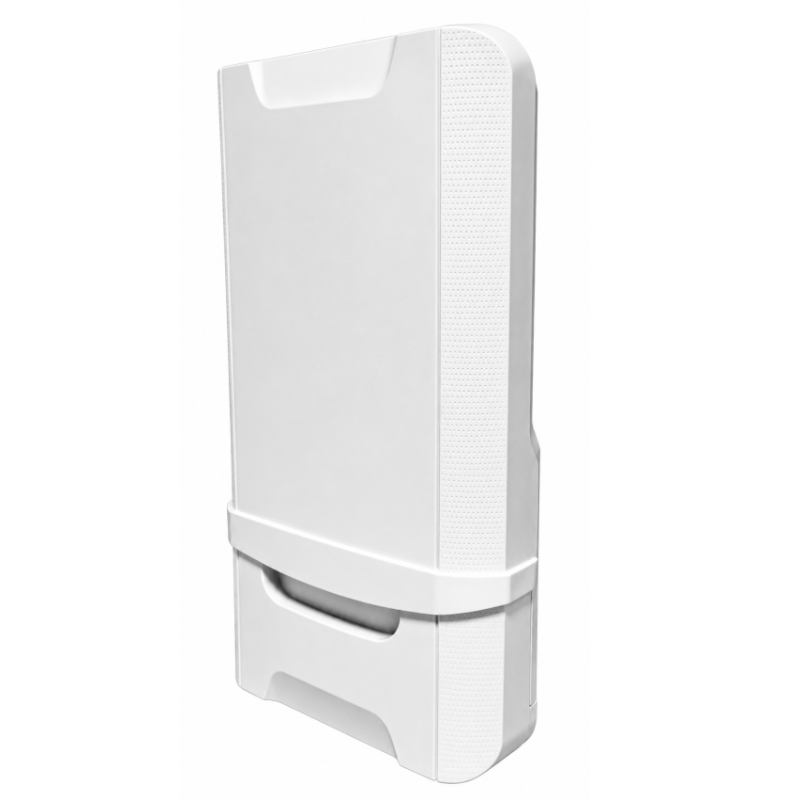

HL-312 high performance LTE outdoor CPE supports PCI lock, band lock and PLMN lock.
300Mbps sim card hotspot 4G wireless bridge router with 1 pc gigabit RJ45 PoE LAN Port.
LED display internet cat6 internet router supports multiple VPN.
| Item | Specification | |
| Product Name | HL-312 4G CAT6 ODU | |
| Hardware Specification | LTE chip set | GCT GDM7243QT |
| LTE standard | 3GPP Release 10/11 CAT 6 | |
| Flash | 2Gb | |
| DDR | 1Gb | |
| Power Supply | 48V/0.35A DC (Gigabit PoE) | |
| Ethernet LAN Port/POE input | 1 * Gigabit RJ45 PoE LAN Port 10/100/1000 auto-sensing, auto-MDI/MDIX | |
| Maximum Power Consumption | <7w | |
| IP rating | IP65 | |

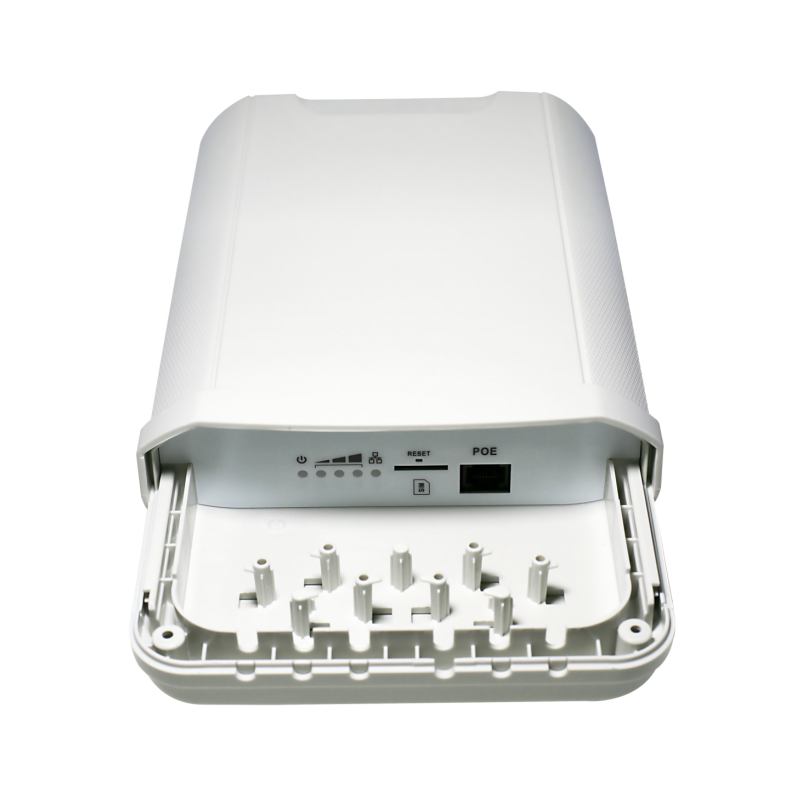

| LED | Power/WAN/LAN/SIM/ Signal Strength | |
| USIM | Support 1.8V/3.0V 2FF USIM | |
| RJ45 | 1 * Gigabit RJ45 | |
| Reset | Button | |
| Antenna | 4 directional antenna | |
| RF Specification | Support Bands | FDD |
| B28A /B28B or B3 B5 B17 | ||
| or 38/40/41/42/43/48 | ||
| Output Power | 23dBm±2dBm | |
| CA | Inter/Intra 2CA | |
| MIMO | DL 2*2，DL 4*4 | |
| Tx | 1 Tx | |
| Output Power | 23±2 dBm | |
| LTE Antenna | 4 directional antenna | |
| LTE | 700M~1G: 5dBi | |
| Antenna | 1.7G~2.7G: 8dBi | |
| Gain | 3.4G~3.8G: 11 dBi | |
| Enviornment Specification | Temperature | IP65: -30C ~ 60C |
| CE FCC: -40C ~ 85C | ||
| Humidity | Operating: 10 ~ 90% | |
| Storge: 5 ~ 95% | ||
| Software Specification | Language Settings: Simple Chinese, English | |
| Support NAT/Bridge/Router mode | ||
| Support the http or https web server | ||
| Support two users (admin user and normal user) and different limitation and display | ||
| Peak Throughput | TDD DL 260Mbps UL30Mbps | |
| FDD DL 300Mbps UL50Mbps | ||
| LAN | 1000Mbit/s | |
| MDI/MDIX auto-sensing | ||
| IEEE802.3/802.3u is compatible | ||
| PIN Management, SIM card Authentication | ||
| Encryption backup current settings and restore the backup settings | ||
| Export current diagnosis results and operation logs | ||
| Statistics | Link Status (LAN) | |
| Transmit / receive traffic in | ||
| packets | ||
| Up Time | ||
| Support multi-APN | ||
| VPN | L2TPV2/V3 | |
| PPTP | ||
| GRE L2/L3 | ||
| GRE over IPSec | ||
| L2TP over IPSec | ||
| IPSec | ||
| IPV6/IPV4 dual stack | ||
| Status | Signal strength | |
| Network type | ||
| Network connection status | ||
| SIM card status | ||
| Operator name, system mode | ||
| Support full band or preferred band and frequency | ||
| Support PCI lock (Cell lock), Band lock, PLMN lock | ||
| Only carrier SIM shall work in the CPE | ||
| Support BIP | ||
| Device Specification | Integrity | Image One Version |
| Check | Image One Checksum | |
| Image Two Version | ||
| Image Two Checksum | ||
| Version | Auto Rollback to previous version when upgrade fail | |
| Rollback | ||
| Software | Full image upgrade | |
| Upgrade HTTP/FTP | Firmware upgrade manually | |
| Auto | Enable / Disable Upgrade | |
| Upgrade | Firmware | |
| Upgrade URL | ||
| Version file | ||
| Check new firmware every (hr.: 1~744) | ||
| Start Time | ||
| Random Time | ||
| TR069 | Supports upload / download the ACS specified file | |
| Support download CPE | ||
| configuration file | ||
| Support configure & parameters | ||
| Support remote upgrade | ||
| Support CPE version update | ||
| Supports debugging operations | ||
| Support cycle monitor | ||
| Port mirror | Can enable or disable the port mirror function | |
| syslog | Support the syslog function can send the log to the PC via LAN | |
| Diagnostics | Support the Ping and trace route | |
| Bridge Mode | Data traffic forward | Forward the data traffic between the LTE network and PCs. |
| Maximum 4 PCs support | Each PC connect to the LTE network via one APN | |
| Module can be managed | One APN can be allocation for the module and the module can be managed via TR069 such remote update version | |
| Public IP allocation | PC get the public IP dynamic from the DHCP server in the CPE. The IP is public CPE get from LTE network. | |
| Multiple | Up to 4 APNs support, and can set the static router for each APN | |
| APN | ||
| Firewall Features | Firewall Configuration | Allow Ping from WAN |
| Allow HTTPs login from WAN | ||
| HTTPs Login Port from WAN | ||
| DMZ | ||
| DDOS | ||
| Redirect ICMP to the Host | ||
| Support the IP filter | ||
| Support the MAC Filter | ||
| Support the URL Filter | ||
| Support UPnP | ||
| Support the Port forwarding | ||
| Router Mode | LAN | Can be set 2 IP addresses on the LAN and for 2 different Network |
| WAN | WAN IP can be set dynamic | |
| Router protocol | Static route | |
| DNS | Can be set | |
| Multiple APN | Up to 4 APNs support, and can set the static router for each APN | |
| Appendix-Delivers | HL-312 Outdoor CPE | 1 PCS |
| PoE Injector | 1 PCS | |
| adapter | 1 PCS | |

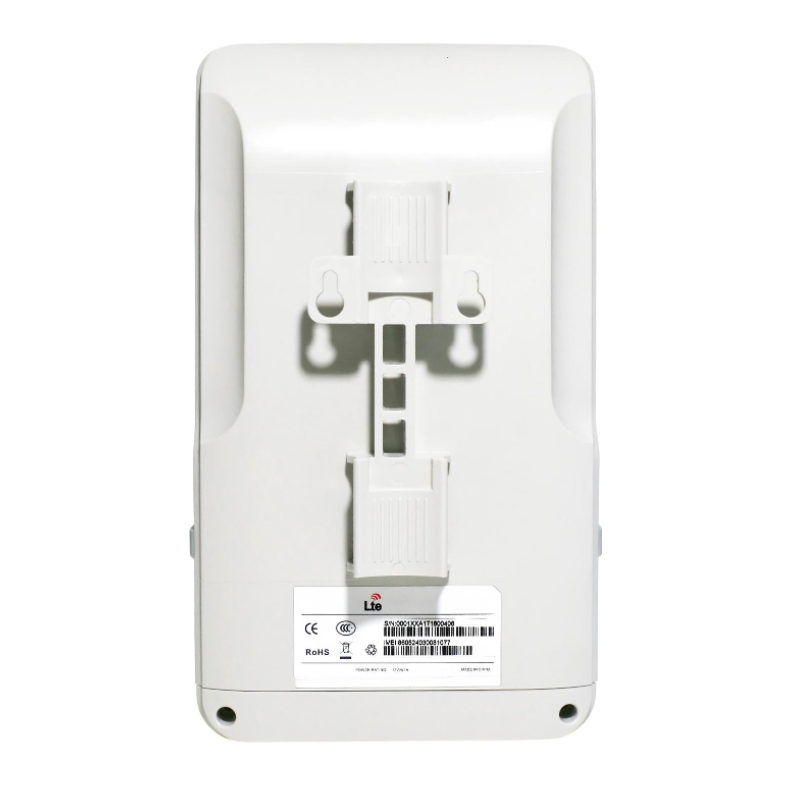

| Accessories for pole mounting | 1 PCS | |
| Quick Start Manual | 1 PCS | |
| NAT Mode | NAT | Support NAT function |
| Firewall | Can enable or disable the firewall | |
| Multiple APN | Up to 4 APNs support, and can set the static router for each APN | |
| DMZ | The DMZ can be set. | |
| DHCP server | Support the DHCP server | |
| DNS | Support the auto DNS or manual DNS configuration | |
