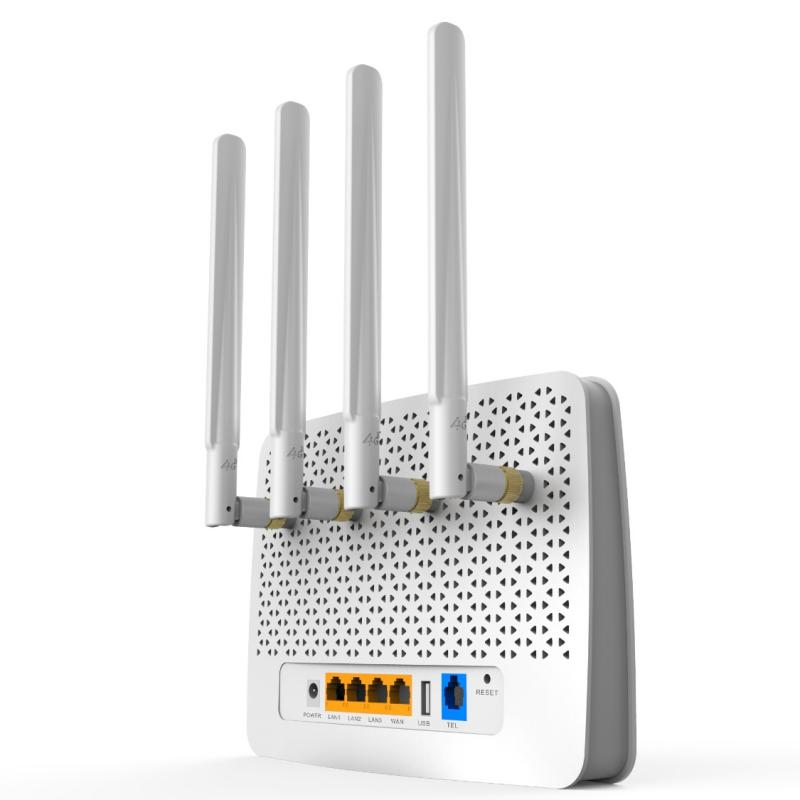

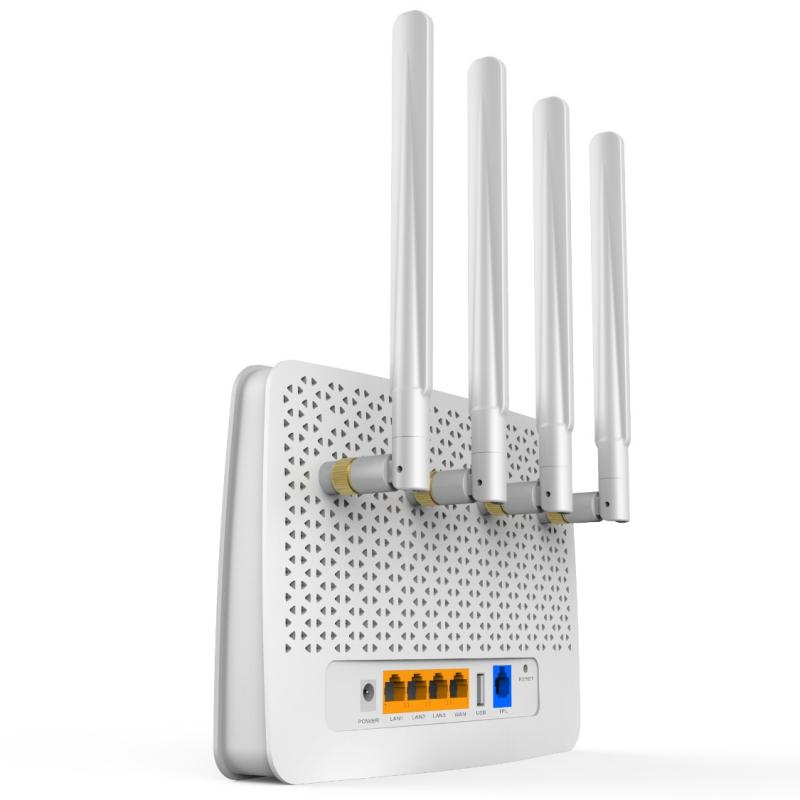

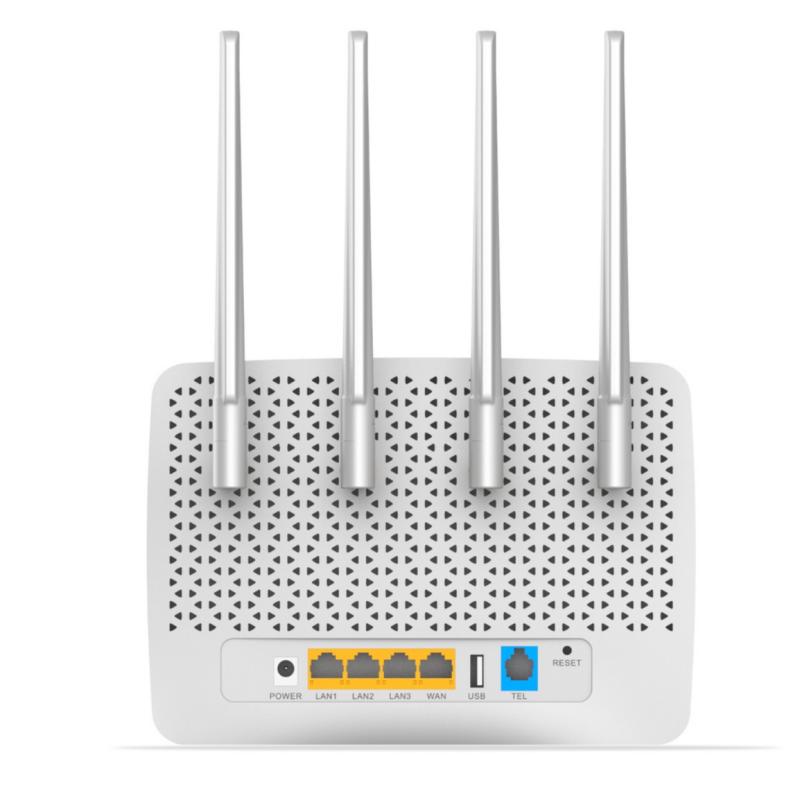

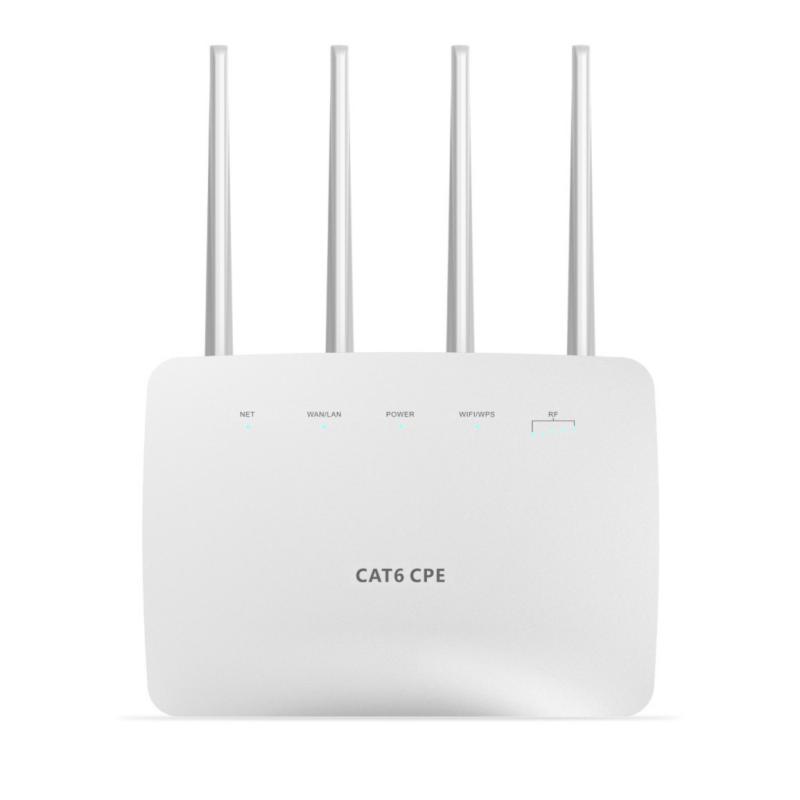

300Mbps Cat6 4G mobile broadband with 4 pcs external and high-gain internal antenna.
Qualcomm 9*50 LTE module home wireless router with parent control and TR069 upgrade.
2.4&5 GHz WiFi MIMO 4x4 dual band WiFi router with 4 pcs Ethernet ports.
| Category | Feature & specification | Description |
| Basical Information | Model Name | CPE |
| Form Factor | CPE | |
| Dimension | 170mm*155mm*25mm | |
| Weight | about 450g | |
| Color | White/Black | |
| Air Interface | Technical Standard | Compatible with WCDMA, FDD-LTE, GSM 802.11 b/g/n/ac |
| Frequency（SKU1） | LTE FDD:B1 B3 B5 B7 B8 B20,TDD B38 B40 WCDMA:900/2100 GSM:850/900/1800/1900 |
|
| WIFI | 2.4&5 GHz, WIFI 4*4 MIMO，802.11 b/g/n/ac | |
| Performance | Maximum Data Throughput | LTE CAT 6 FDD-LTE DL 300 Mbps/UL 50Mbps |
| Receive Diversity | Support Receive Diversity | |
| MIMO | Support DL 4x4 MIMO Or 2*2 MIMO +2CA | |
| BB Chipset (Modem) | 1 pc 4G Module , Qualcomm 9*50 | |
| RF Chipset | Qualcomm 9*50 | |
| AP+WiFi Chipset | MT7621A+MT7603E+MT7612EN | |
| Memory | 4Gb+2Gb | |
| power consumption | <12W | |
| Power Voltage | DC12V/1A | |
| USIM/SIM | 1*2FF SIM card support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card;internal push-push SIM slot |
|
| LED | Power Indication LED，WAN Signal Strength， WiFi/WPS Indication LED， WAN/LAN Status LED，Internet Status LED, | |
| USB | Yes ,USB 3.0 ,for debug and upgrade use . Not for end user using . | |
| Antenna | Internal Antenna , External Antenna | |
| Buttons | POWER，Reset,WPS | |
| Ethernet | 1WAN+4LAN, 10BaseT/100Base/1000Base automatic adaptive port | |
| Reset | Pinhole | |
| ESD | ESD Protection circuit；Contact±8KV、Air±10KV | |
| Software | SW Update | TR069 & Local Update |
| WIFI Mode | AP | |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK; | |
| SMS & Phone Book | Not Support by default, can be customized | |
| AGPS | Not Support | |
| IPv4 | Support IPv4 | |
| IPv6 | Support IPv6 | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| Data Statistics | Support | |
| VPN Pass Through | PP2P/L2TP/IPSec | |
| SIM Lock | Support | |
| TR069 | Support | |
| SNTP | Support | |
| DOS ATTACK | Support | |
| DMZ | Support | |
| HTTP | Support | |
| HTTPS | Support | |
| Certification | Depends on customization, cost related | |
| Environment | Operating Temperature | Normal:0°C to +45°C; |
| Storage Temperature | -20° C to +70° C | |
| Humidity | 5%~ 95% |
