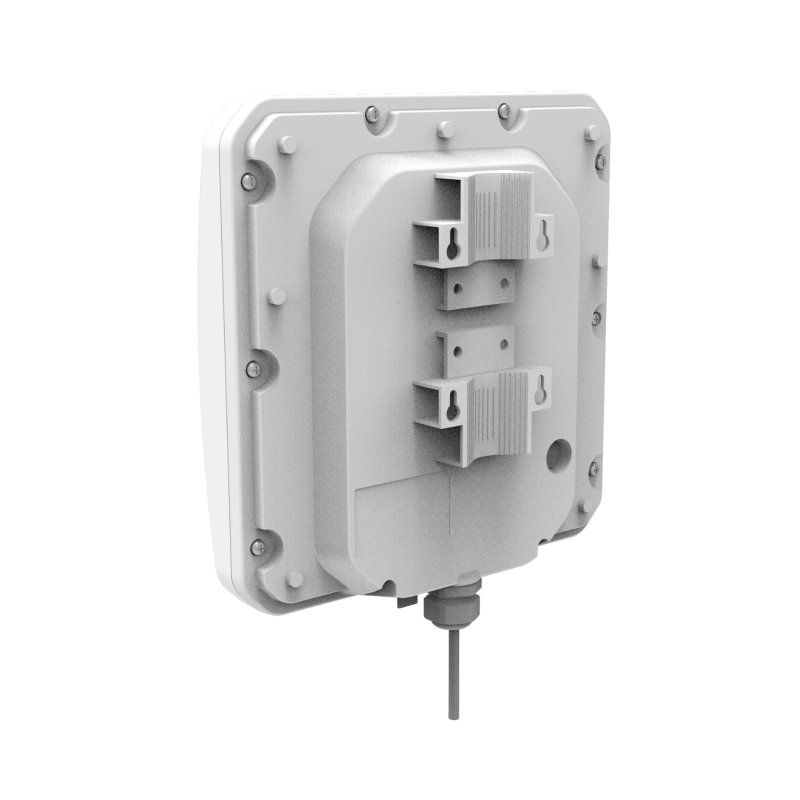

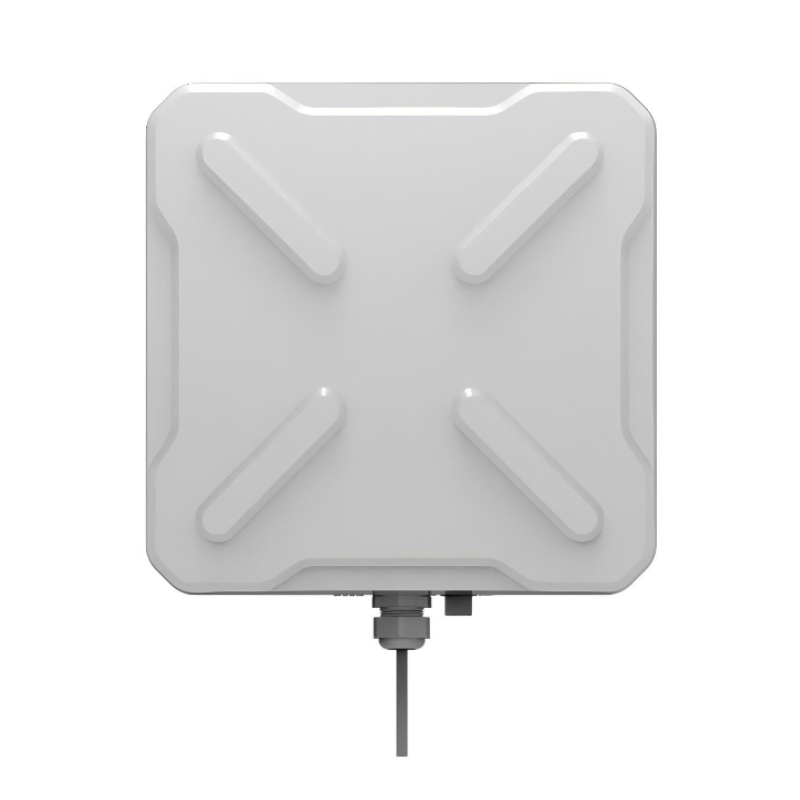

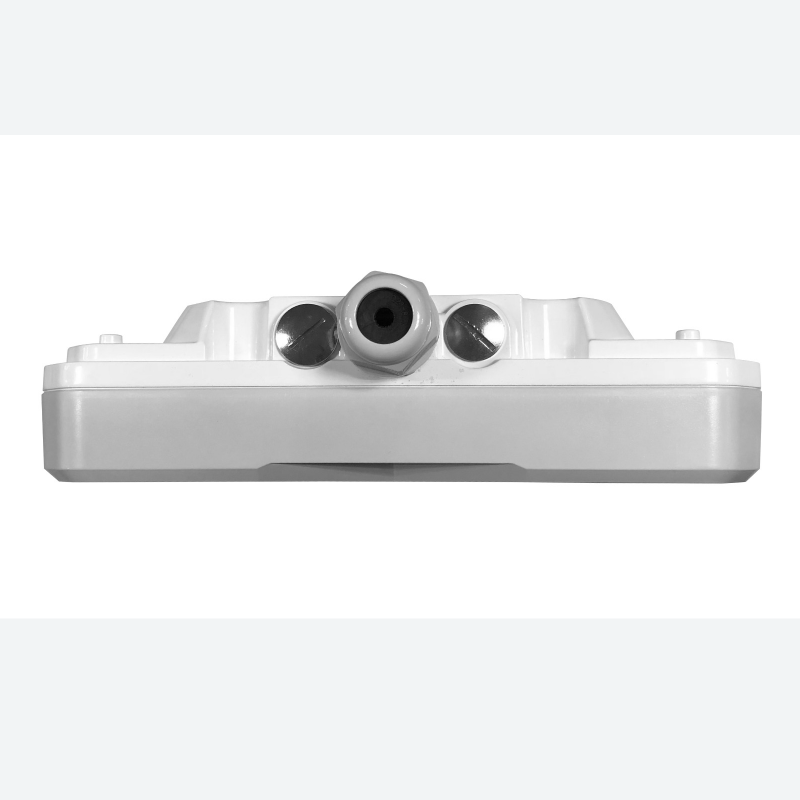

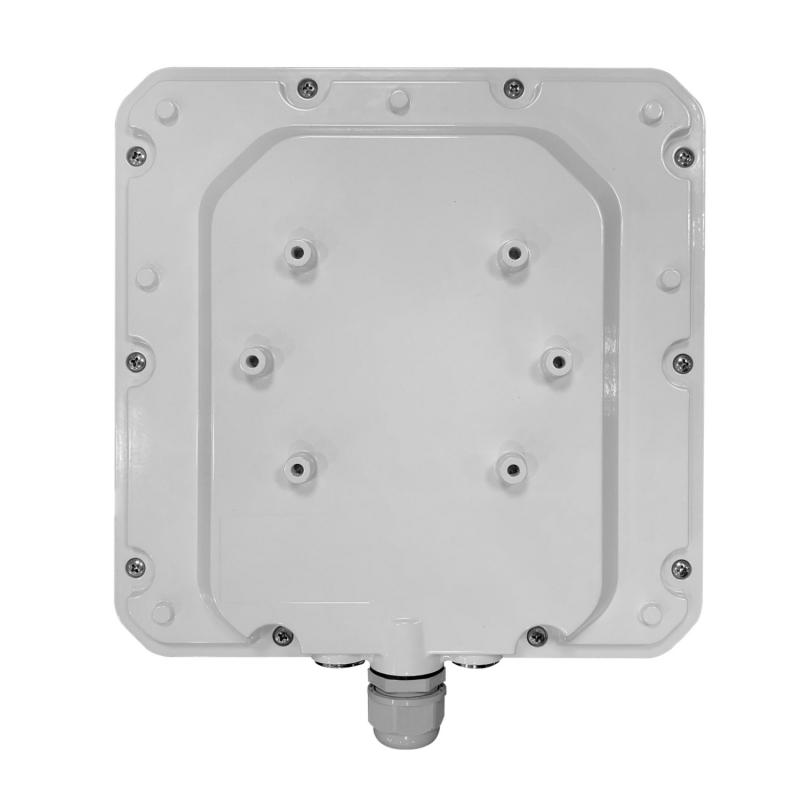

HL-612 highly advanced LTE 600Mbps outdoor CPE for residential, business and enterprise users.
Fast speed 4G CAT12 ODU for outdoor using.
3GPP Release 12 gigabit outdoor router supports multi-VPN and TR069 management.
| Hardware Specification | Item | Description |
| Product Name | HL-612 4G CAT12 OD | |
| LTE chipset | GCT GDM7243A | |
| LTE standard | 3GPP Release 12 CAT 12 | |
| Flash | 2Gb | |
| DDR | 2Gb | |
| Power Supply | Typical value 24VDC/48VDC or compliant to IEEE 802.3at | |
| Ethernet LAN Port/POE input | 1 * Gigabit RJ45 PoE LAN Port 10/100/1000 auto-sensing, auto-MDI/MDIX |
|
| IP rating | IP67 | |
| LED | 8 LED Indicators (PWR, SYS, NET, SIM, RF Signal*4) | |
| USIM | Support 1.8V/3.0V 2FF USIM | |
| RJ45 | 1 * Gigabit RJ45 | |
| Reset | Reset and restore factory setup | |
| Antenna | 4 directional antenna | |
| Dimensions | 288mm x 288 mm x 88mm | |
| Weight | ODU < 2Kg | |
| Power Consumption | < 7W | |
| Power adapter | AC 90~240V | |
| DC 24V/0.5A | ||
| RF Specificaition | Support Bands | FDD: B1/2/3/4/5/7/8/12/17/20/28A/28B |
| TDD: B38/41/42/43/48 | ||
| CA | Support both intra and inter band CA DL 2CA 4x4 MIMO DL 4CA 2x2 MIMO UL 2CA |
|
| MIMO | DL 2x2 (4CA 256QAM); DL 4x4 (2CA 64QAM); UL 2x2 64QAM; |
|
| Tx | 1Tx, 2Tx | |
| Transmission Mode | TM1/2/3/4/5/6/7/8/9 | |
| Output Power@25℃ | 23±2 dBm | |
| Receiving Sensitivity | FDD: 100dBm/10MHz@QPSK | |
| TDD: 97dBm/20MHz@QPSK | ||
| LTE Antenna | 4 directional antenna | |
| LTE Antenna Gain | 0.7~1G: 6dBi | |
| 1.7~2.7G: 10dBi | ||
| 3.4~3.8G: 14dBi | ||
| Environment Specification | Temperature | Operating: -40℃ ~ 65℃ |
| Storge: -40℃ ~ 85℃ | ||
| Humidity | Operating: 10 ~ 90% | |
| Storge: 5 ~ 95% | ||
| Topology | IPv6/IPv4 dual stack | |
| Status | Signal strength | |
| Network type | ||
| Network connection status | ||
| SIM card status | ||
| Operator name, system mode | ||
| Support full band or preferred band and frequency | ||
| Support PCI lock (Cell lock), band lock, PLMN lock | ||
| Only carrier SIM shall work in the CPE | ||
| Support BIP | ||
| Software Specification | Language Settings: Simple Chinese, English | |
| Support NAT/Bridge/Router mode | ||
| Support the http or https web server | ||
| Support two users (admin user and normal user) and different limitation and display | ||
| Peak Throughpu | FDD DL 800Mbps (4CC 256QAM); TDD DL 560Mbps (4CC 256QAM); FDD UL 150Mbps (Configuration 2:7); TDD UL 30Mbps (Configuration 2:7 ); |
|
| LAN | 1000Mbit/s | |
| MDI/MDIX auto-sensing | ||
| IEEE802.3/802.3u/802.3ab is compatible | ||
| PIN Management, SIM card Authentication | ||
| Encryption backup current settings and restore the backup settings | ||
| Export current diagnosis results and operation logs | ||
| Statistics | Link Status (LAN) | |
| Transmit / receive traffic in packets | ||
| Up Time | ||
| Support multi-APN | ||
| VPN | L2TP V2/V3 | |
| PPTP | ||
| GRE L2/L3 | ||
| GRE over IPSec | ||
| L2TP over IPSec | ||
| Supports debugging operations | ||
| Support cycle monitor | ||
| Port mirror | Can enable or disable the port mirror function | |
| syslog | Support the syslog function can send the log to the PC via LAN. | |
| Diagnostics | Support the Ping and trace route | |
| Bridge Mode | Data traffic forward | Forward the data traffic between the LTE network and PCs. |
| Maximum 4 PCs support | Each PC connect to the LTE public network via one APN | |
| Module can be managed | One APN can be allocation for the module and the module can be managed via TR069 such remote update version | |
| Public IP allocation | PC get the public IP dynamic from the DHCP server in the CPE. The IP is public CPE get from LTE network. | |
| Multiple APN | Up to 4 APNs support, and can set the static router for each APN | |
| Firewall Features | Firewall Configuration | Allow Ping from WAN |
| Allow HTTPs login from WAN | ||
| HTTPs Login Port from WAN | ||
| DMZ | ||
| DDOS | ||
| Redirect ICMP to the Host | ||
| Support the IP filter | ||
| Support the MAC Filter | ||
| Support the URL Filter | ||
| Support UPnP | ||
| Support the Port forwarding | ||
| Router Mode | LAN | Can be set 2 IP addresses on the LAN and for 2 different Network. |
| WAN | WAN IP can be set dynamic or static. | |
| Router protocol | Static Route | |
| DNS | Can be set | |
| Multiple APN | Up to 4 APNs support, and can set the static router for each APN | |
| Appendix-Delivers | HL-612 Outdoor CPE | 1 PCS |
| PoE adapter | 1 PCS | |
| Accessories for pole mounting | 1 PCS | |
| Quick Start Manual | 1 PCS | |
| NAT Mode | NAT | Support NAT function |
| Firewall | Can enable or disable the firewall | |
